Utility Functions

Return

Halts execution and returns the defined result immediately. Return is useful when used in combination with conditional statements where you want to change the return based on the result of the condition.

Try/Catch

Try/catch enables you to catch any errors that may occur in a specific stack of functions and execute additional logic based on that result. This function essentially enables fully custom error handling in Xano.

Try - Try these functions first

Catch - Execute these functions if the Try statements return an error

Finally - Execute these functions regardless of the result

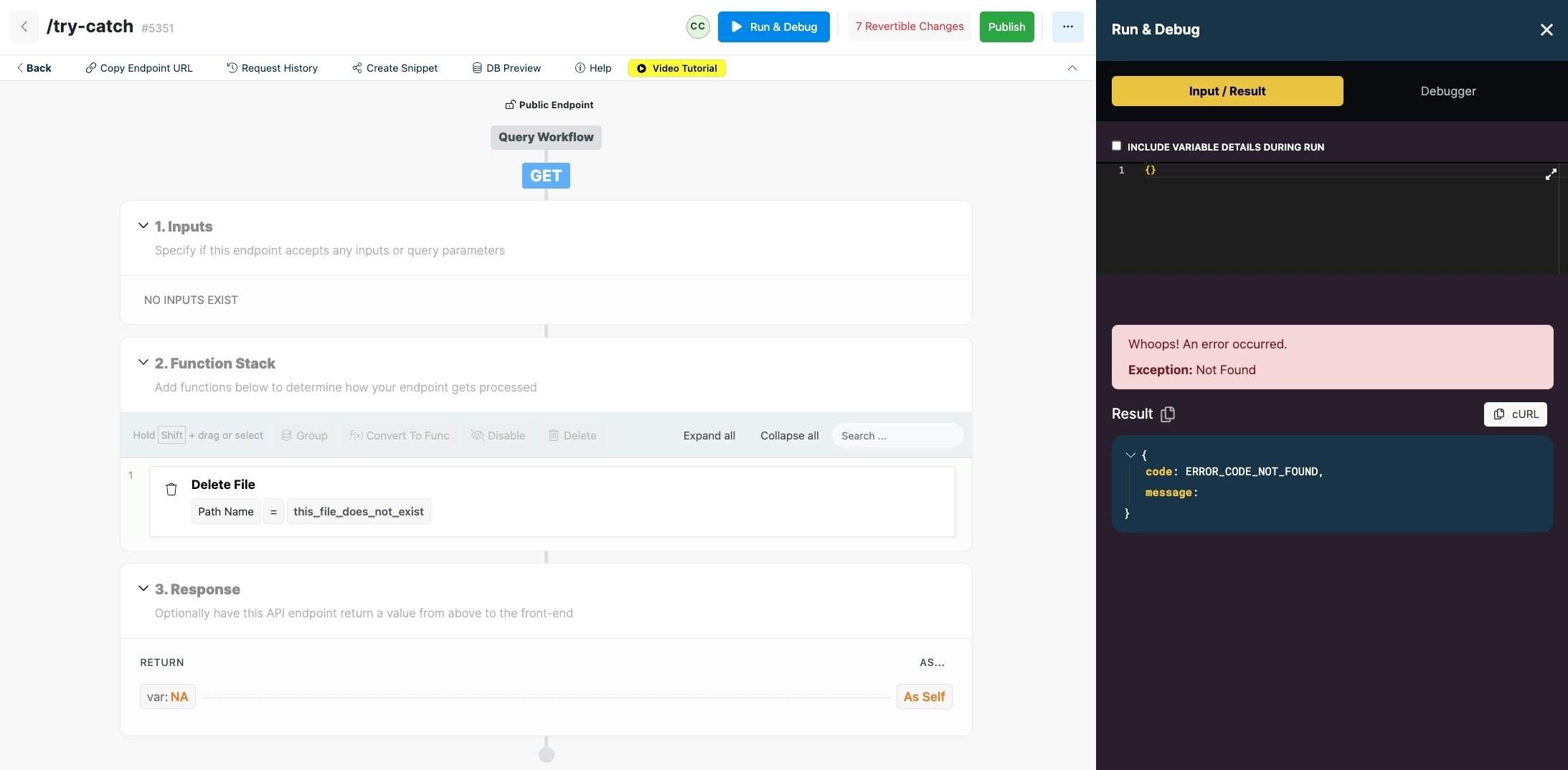

In the below example, we are starting with a Delete File function, and trying to delete a file that does not exist.

Deleting a file that does not exist returns ERROR_CODE_NOT_FOUND and halts execution.

Normally, when an error occurs in the function stack, execution is halted entirely. If we wanted to deploy some customized error handling to change this behavior, we can do so by placing this function inside of a Try/Catch statement.

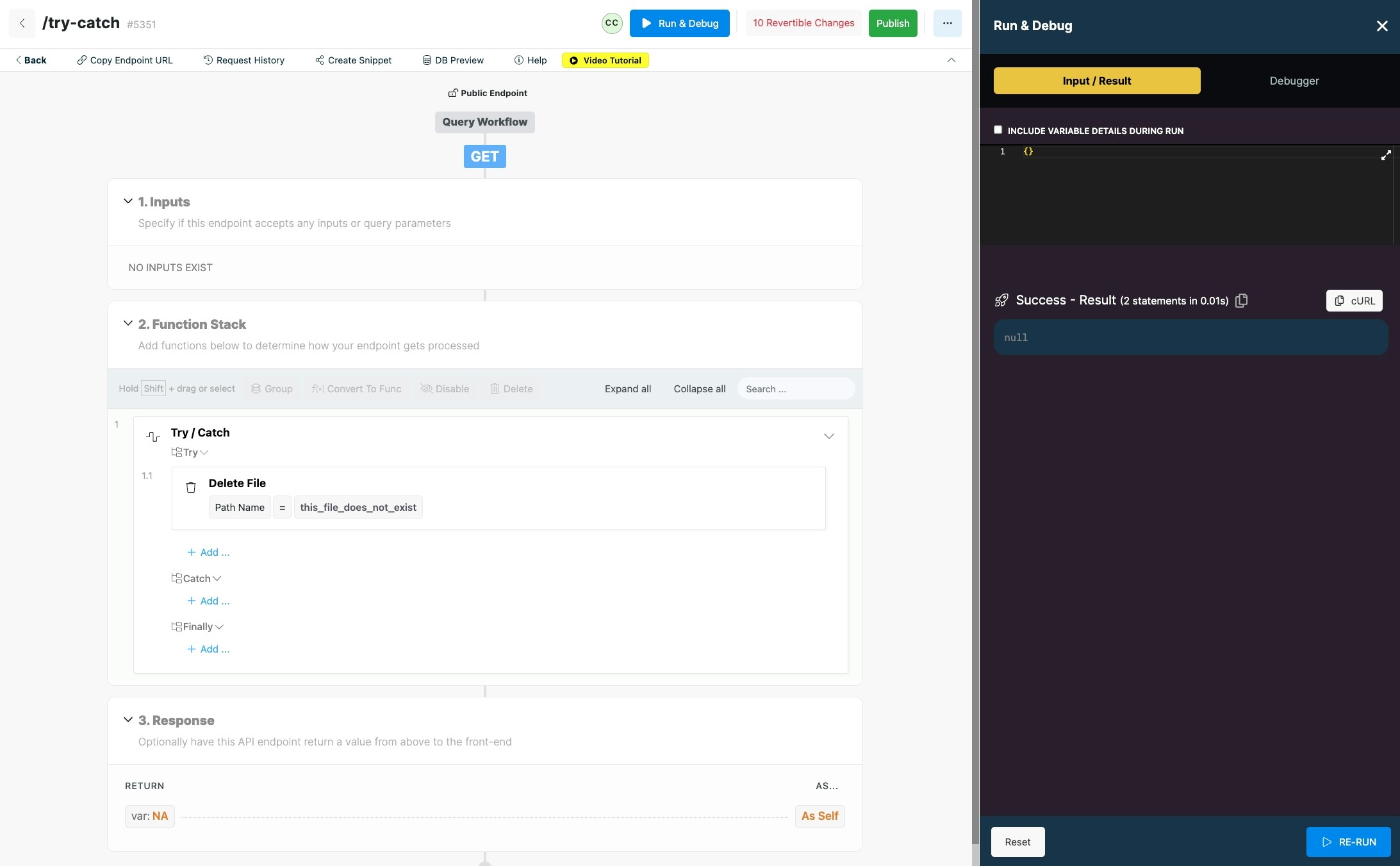

In the below iteration, we've moved Delete File into the Try portion of a Try/Catch statement. Now, when we run the endpoint again, the function itself is still failing, but the API itself still returns a success response.

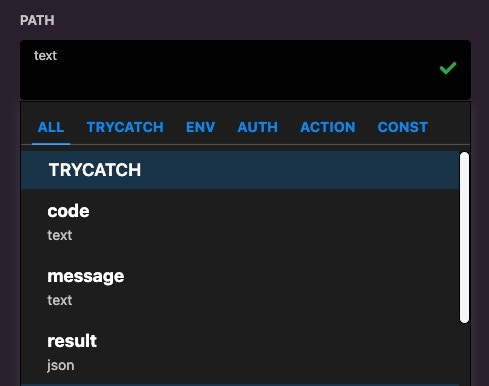

We can then use the Catch portion to read the error, using three variables only available via Try/Catch.

• code is the error code

• message is the error message

• result will be any accompanying data. Most functions will not output a result, and only return data in code and message

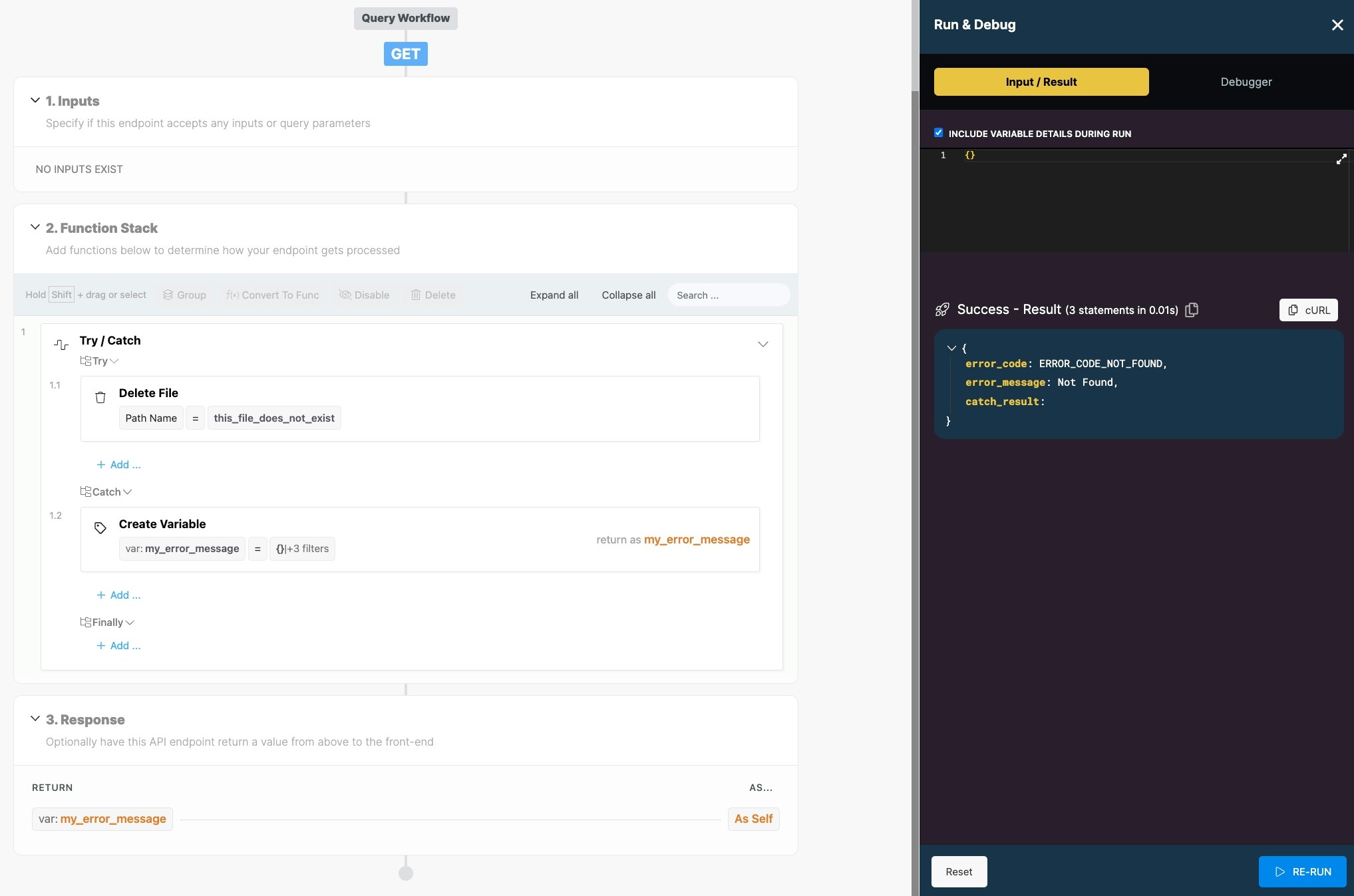

When we run this again and output those variables as part of our response, you'll see that the API still returns a 'Success' result, but we can view the error message returned by our function in our Try statement.

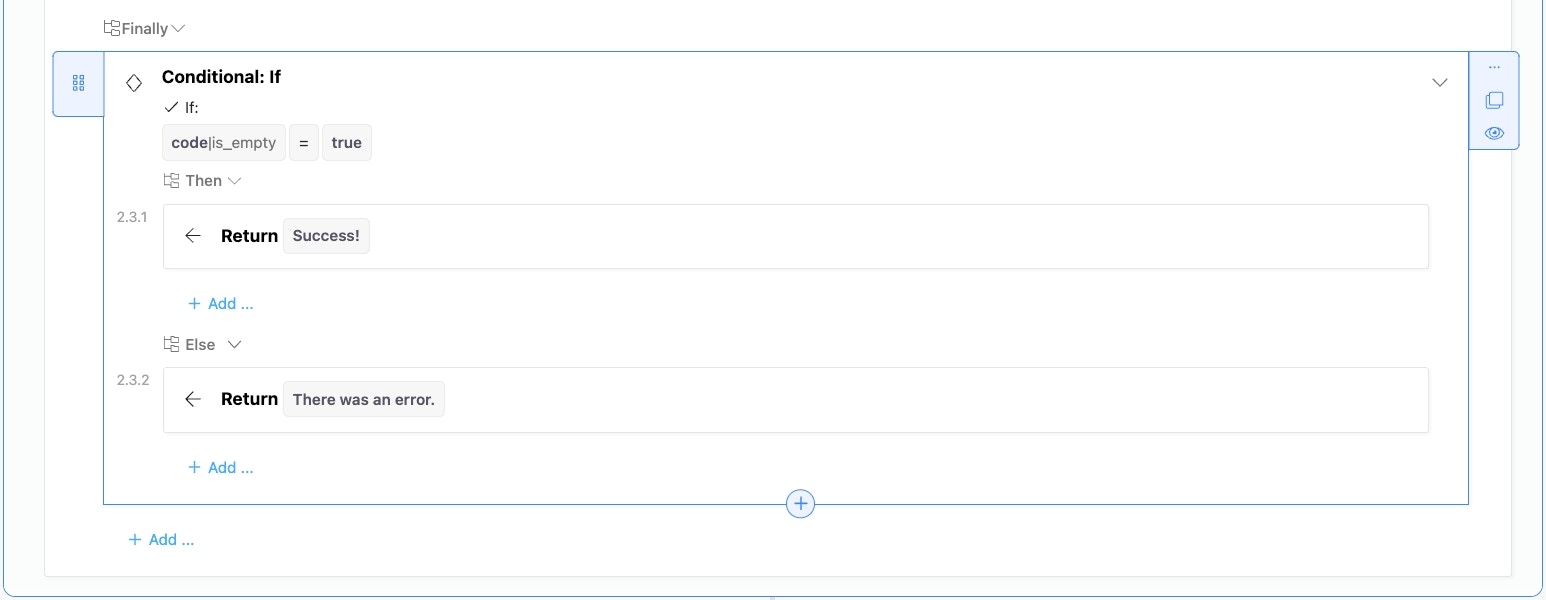

You can then use the Finally section to determine the behavior based on the result of your Try/Catch. In the below example, we're using a conditional statement to check if the try/catch code variable is empty. If it is empty, we return a success message. If it is not empty (which means there was an error in our Try statements), we return an error message.

Practical Example of using Try/Catch

Throw Error

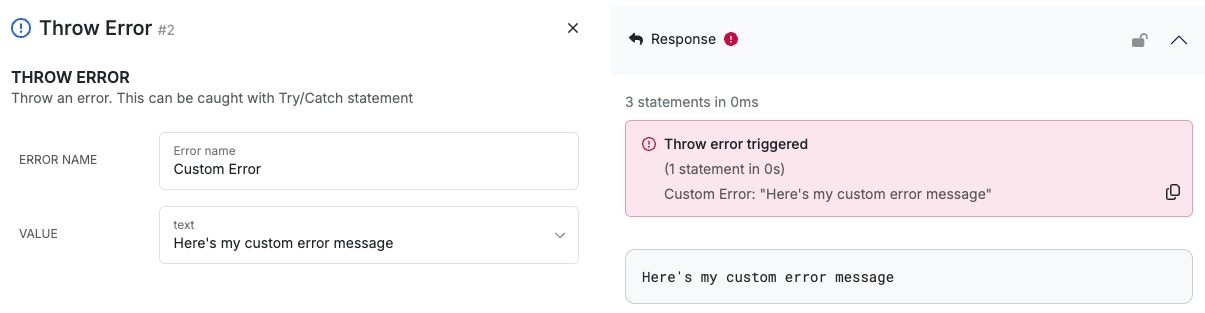

Throw Error allows you to halt execution with a custom error message. This is different from a Precondition step because it does not restrict you to specific error codes. It can be used in combination with Try/Catch or on its own.

Post Process

Post process allows you to execute additional logic after your API has provided a response. This can be useful if you want to see a response on your front-end without waiting for any additional processing to occur, but a background task does not meet your needs.

Example

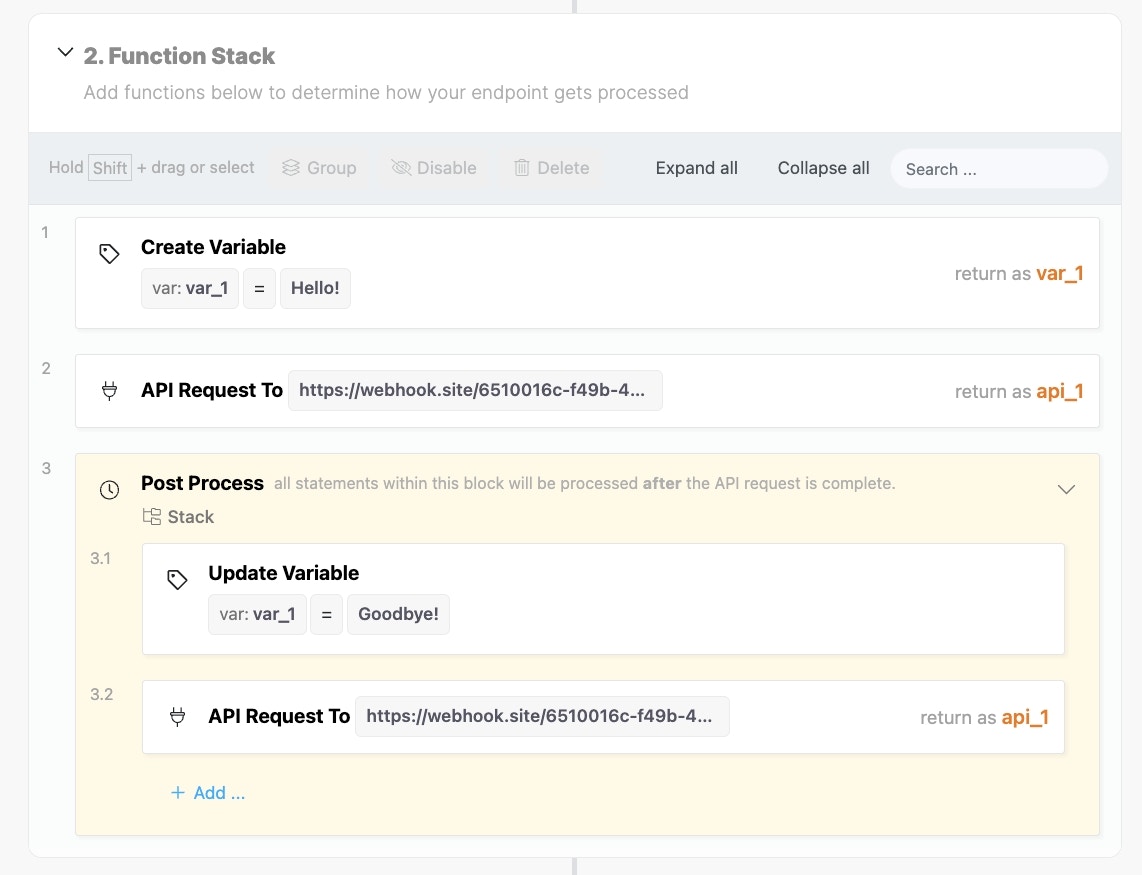

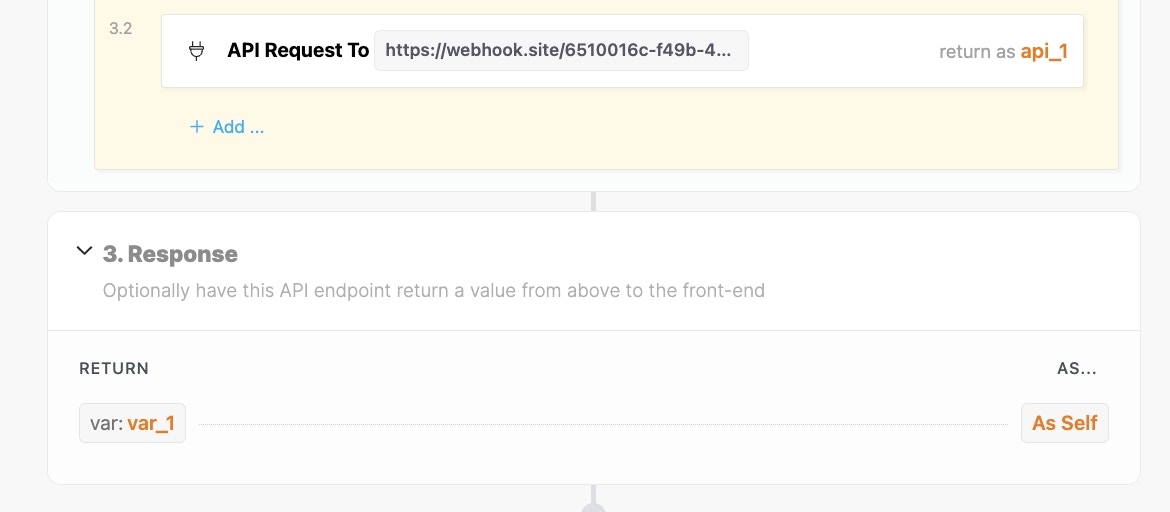

In this function stack, we are setting var_1 with a value of "Hello" and calling an external API to send the contents of this variable.

Afterwards, we have added Post Process to update var_1 and send a new request to the same external API.

The function stack is set to respond with the contents of var_1.

This means that the following will happen in sequence:

1. Set var_1 to "Hello!"

2. Send var_1 to external API

3. The Xano API responds with "Hello!"

4. Set var_1 to "Goodbye!"

5. Send var_1 to external API

Below is a video of this example in action. Note how the external API recieves both 'Hello' and 'Goodbye', but the Xano API just responds with 'Hello'. Note: the video does not contain any audio.

Post Process will use the state of variables where it is defined. This means that while Post Process executes at the end of the function stack, the placement is still important to ensure that any variables it uses retain the appropriate content.

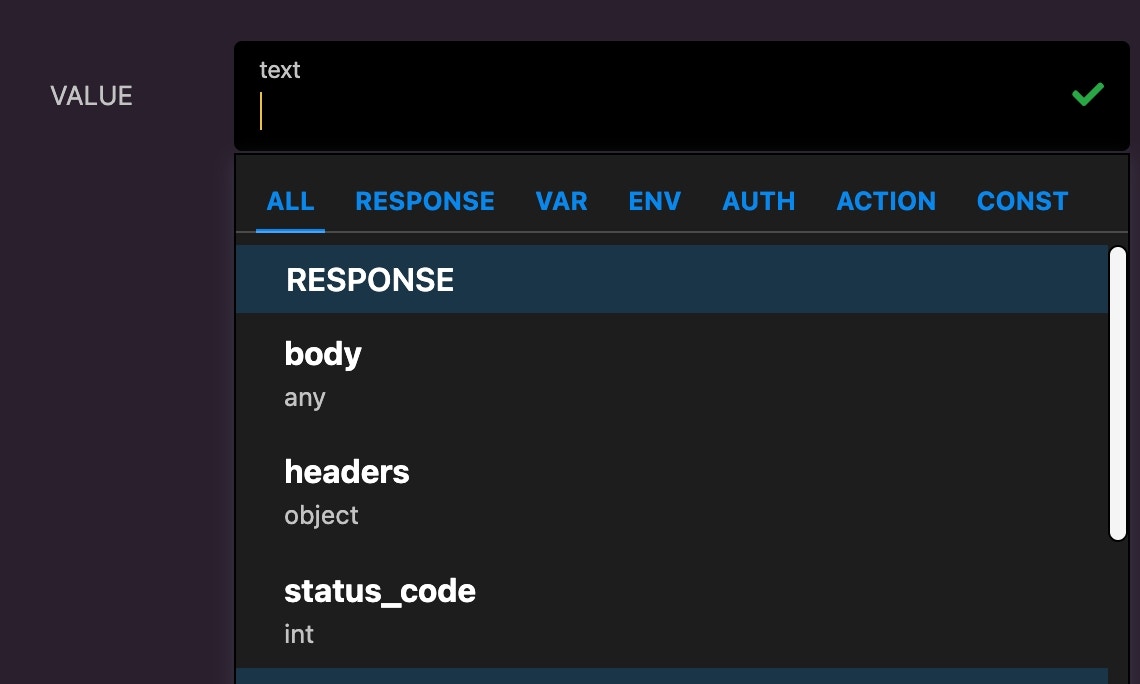

Post Process also enables the use of some special variables: body, headers, and status_code. These are only available during post process, and can be used to transmit any of the corresponding data back to a database table, or to an external API, to record the results of post process.

Debug Log

Debug Log allows you to output specific information in a new debug logging section of the Debugger. This is similar to how a console log statement in Javascript would behave. These steps will not run outside of Run & Debug.

This can be especially helpful for debugging data errors with loops or otherwise just giving you a quick view of a variable's contents during execution. You can insert whatever data you'd like into Debug Logs; they will accept any data type, and can also have filters applied.

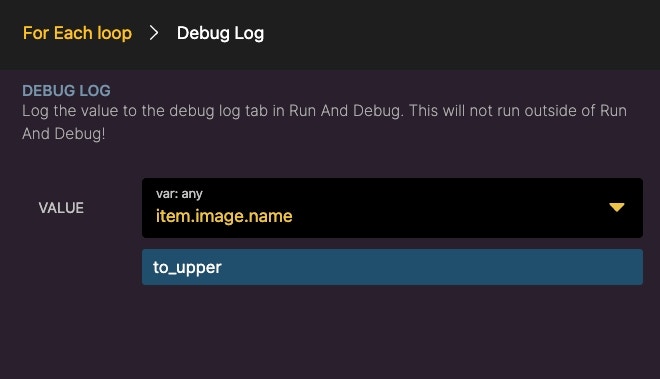

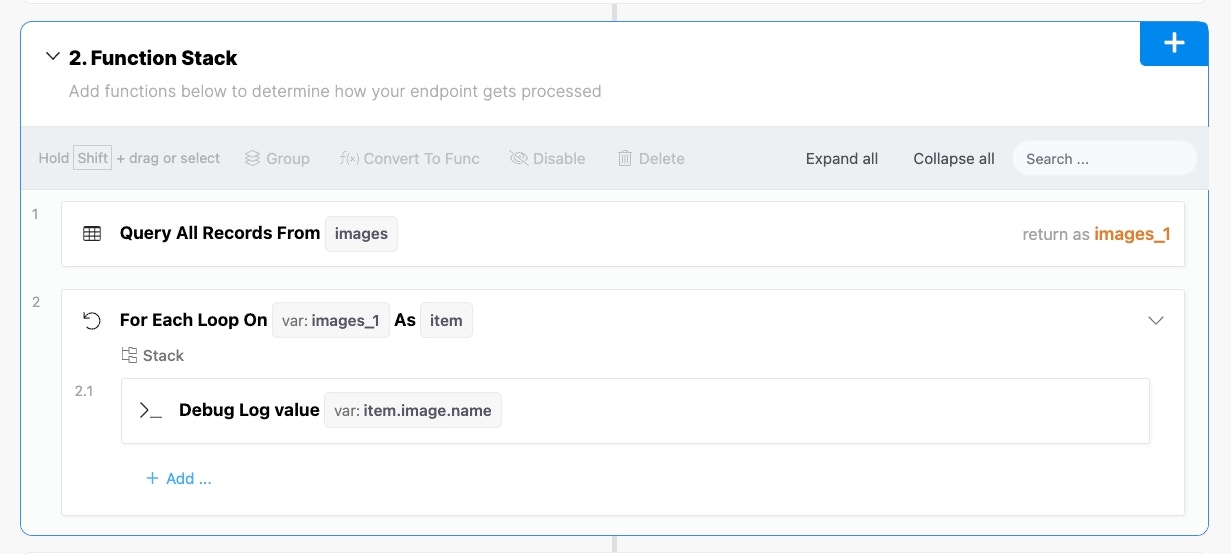

In the below example, we're looping through results from a Query All Records statement, and outputting a specific value from each item to the new Debug Log.

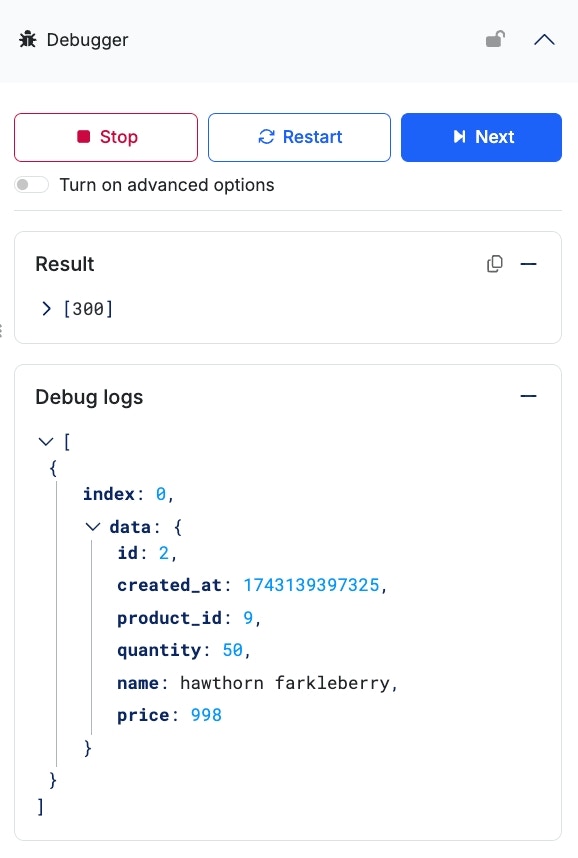

And the result is available in the new Debug Log section of the debugger

Precondition

A precondition is a statement that says "this condition must evaluate as true, or we halt execution and return an error message."

1

Preconditions use the expression builder to define the conditions it checks. Click to define your conditions.

Using the Expression Builder

Each conditional has four different components.

Conditional Type

The conditional type determines how this condition is weighted in the final return. You can choose between AND and OR. AND conditionals require the present conditional and any others before it to be satisfied, such as "where the date is before today AND the user is an admin". OR conditionals do not require any other conditionals to be satisfied, such as "if the user is an admin OR if the user is a manager".

Left Value

This is the first value you're using in the conditional. In a database query, this is usually going to be a column that you want to check against.

Operators

Please note that operators may differ based on where you are building the expression. Database queries will have different operators available than regular conditional statements.

• Equals (==) - an exact match

• Not Equals (!=) - does not equal

• Equals with type matching (===) - an exact value match and an exact type match

  • Ex. Variable var_1 has a value of 123, with a type of text. You set up a conditional statement to check if var_1 === 123, but your value in the conditional statement is of type integer. This would return false, because the types do not match.

• Not equals with type matching (!==) - does not equal value or type, similar to ===

• Greater than (>) - the value on the left is greater than the value on the right

• Greater than or equals (≥) - the value on the left is greater than or equals to the value on the right.

• Less than (<) - the value on the left is less than the value on the right.

• Less than or equals (≤) - the value on the left is less than or equals to the value on the right.

• LIKE - Used for comparing text. Like is case-insensitive and compares if a text string is like another text string. It can be thought of as equals for text but upper case and lower case does not matter.

• NOT LIKE - Used for comparing text. Not Like is case-insensitive and compares if a text string is not like another. It is like not equals for text but upper case and lower case does not matter.

• INCLUDES - Used for comparing text. Includes is a flexible operator and is case-insensitive. It is able to determine if there is a partial match in a text string.

• DOES NOT INCLUDE - Used for comparing text. Does not include determines if a text string is not included in another text string.

• IN - If a single value is found in an array (list). Start with the single value on the left side and the right side should contain the array.

• NOT IN - If a single value is not found in an array (list). The single value should be on the left side and the array on the right side.

• REGEX MATCHES - Regular Expression used for finding patterns in text.
• REGEX DOES NOT MATCH - Regular Expression used for finding a pattern that does not match in text.
• OVERLAPS - Used for comparing two arrays. Overlaps determines if any values in one array are present in the second array.

• DOES NOT OVERLAP - Used for comparing two arrays. Does not overlaps determines if no values in the first array are present in the second array.

• CONTAINS - Contains is an advanced filter used for JSON and arrays. It looks for an exact schema match.

• DOES NOT CONTAIN - Does not contain is the opposite of contains. It determines if there is not an exact schema match.

Right Value

The right value is whatever you are checking against the left value. This could be a hardcoded value, a variable, or even a database field from the same record.

2

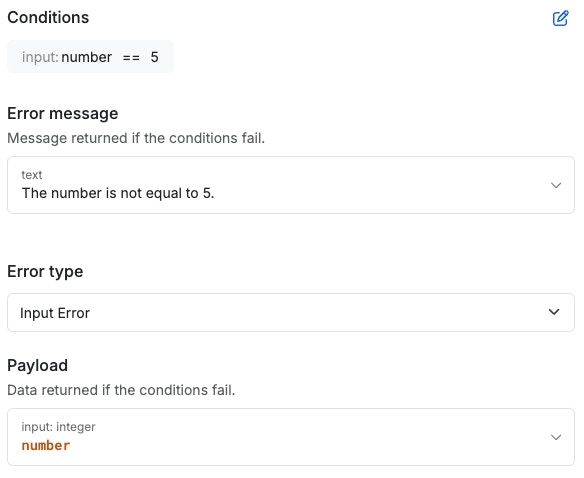

Define what happens if the conditions do not evaluate as true.

You can provide a custom error message, choose an error type, and supply a payload to return, such as the values being checked in your conditions.

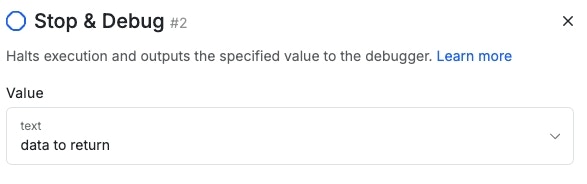

Stop & Debug

Halts execution and returns a value. Useful to ensure that specific pieces of your function stack are running as expected while building.

Group

Groups functions together. This is an organizational tool for you as you build your function stacks and does not impact any part of the actual execution.

Sleep

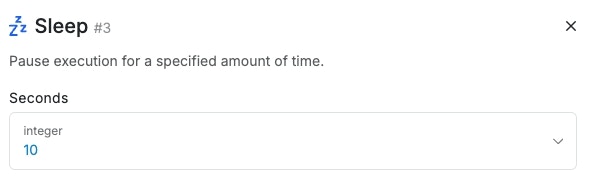

Waits for a defined number of seconds before proceeding to the next step.

CSV Stream

CSV Stream is a powerful function allowing you to 'stream' chunks of a CSV file in sequence to your function stack, allowing for processing of large CSV files.

A successful CSV stream function stack includes three essential parts.

• a file resource to ingest the CSV file This can come from either a File Resource input, or a file delivered by an external API, with a Create File Resource step applied

• a CSV stream function to stream the CSV data This function initiates the streaming of CSV data, and provides an output variable. This output variable is meant for use with a For Each loop
• a For Each loop to run through the individual CSV rows The loop is responsible for performing any functions you'd like on your CSV, such as adding each row to one of your database tables.

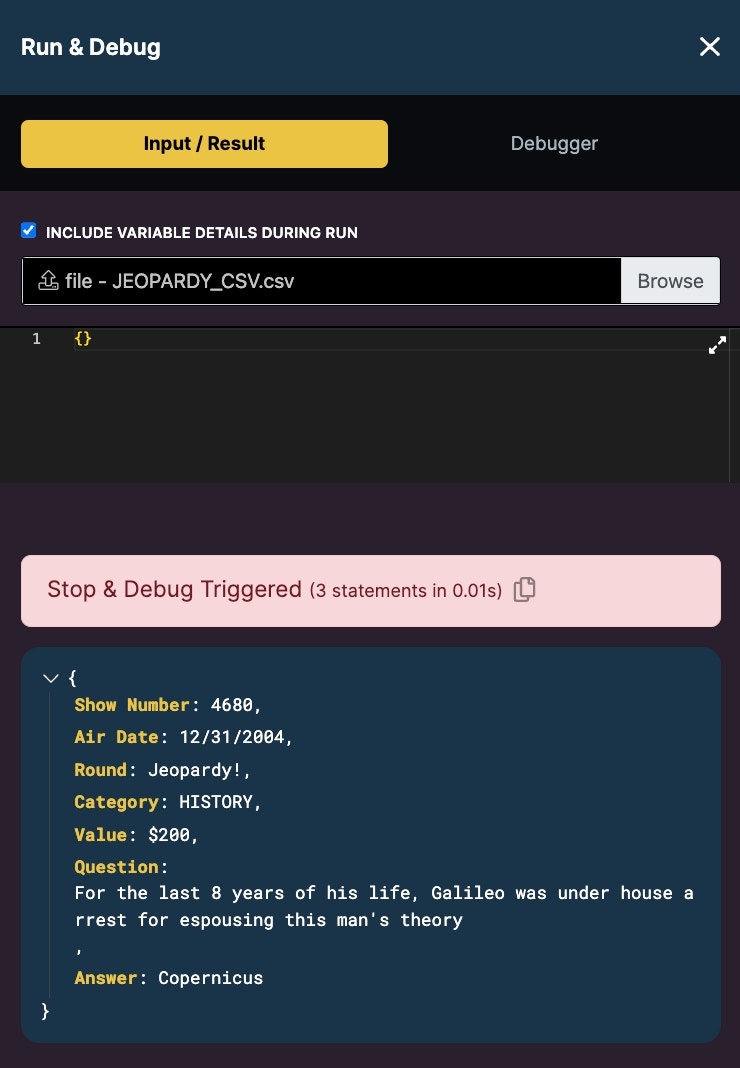

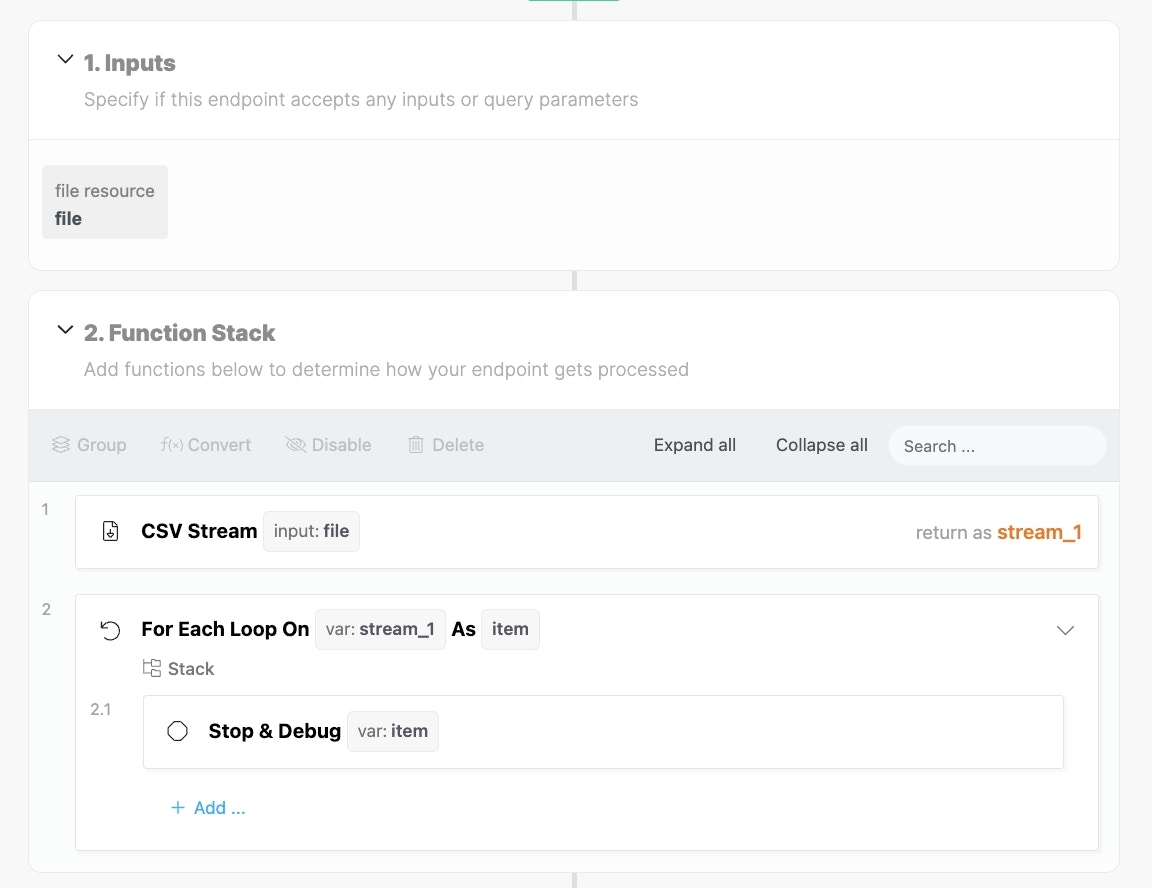

In the below example, we've added these three key components, and can now process the incoming CSV data.

CSV Stream is a much simpler alternative to the previously established method of array functions and object manipulation to process incoming CSV data.

JSONL Stream

HTTP Header

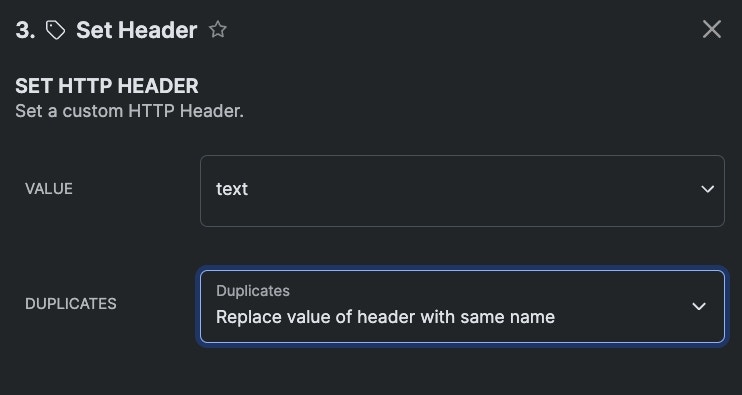

Set a custom HTTP header. This function is useful if you need your responses to deliver specific, custom headers. You can also use this to specify custom API response codes outside of the ones our Precondition function offers.

The duplicates parameter lets you decide to either replace headers that already exist with your new header, or allow for duplicate headers to exist.

Examples of Custom HTTP Headers

Please note that each individual header should use its own Set Header function.

Rate Limiting

These will not enforce rate limits themselves, but it's good information to have in your headers if you are rate limiting your APIs.

X-Rate-Limit-Limit: 100
X-Rate-Limit-Remaining: 95
X-Rate-Limit-Reset: 1615560000

Serving Content Downloads

If you want your API to directly serve file downloads, use this header:

Content-Disposition: attachment; filename="report.pdf"

You may also need:

Content-Type: text/html

Custom HTTP Status

Sometimes, you might need to send an HTTP status that Xano doesn't natively offer using preconditions.

HTTP/1.1 201 Created
Content-Type: application/json

Get All Variables

Returns all of the variables present up to that point in the function stack.

Get All Input

Returns all of the inputs sent to the API in a single object.

Get All Raw Input

Returns all data sent to the API, even if they are not defined inputs. You'd use this function when building a Webhook, or you otherwise aren't sure what data will be sent to this endpoint.

Get Environment Variables

Returns all of your environment variables in a single object.

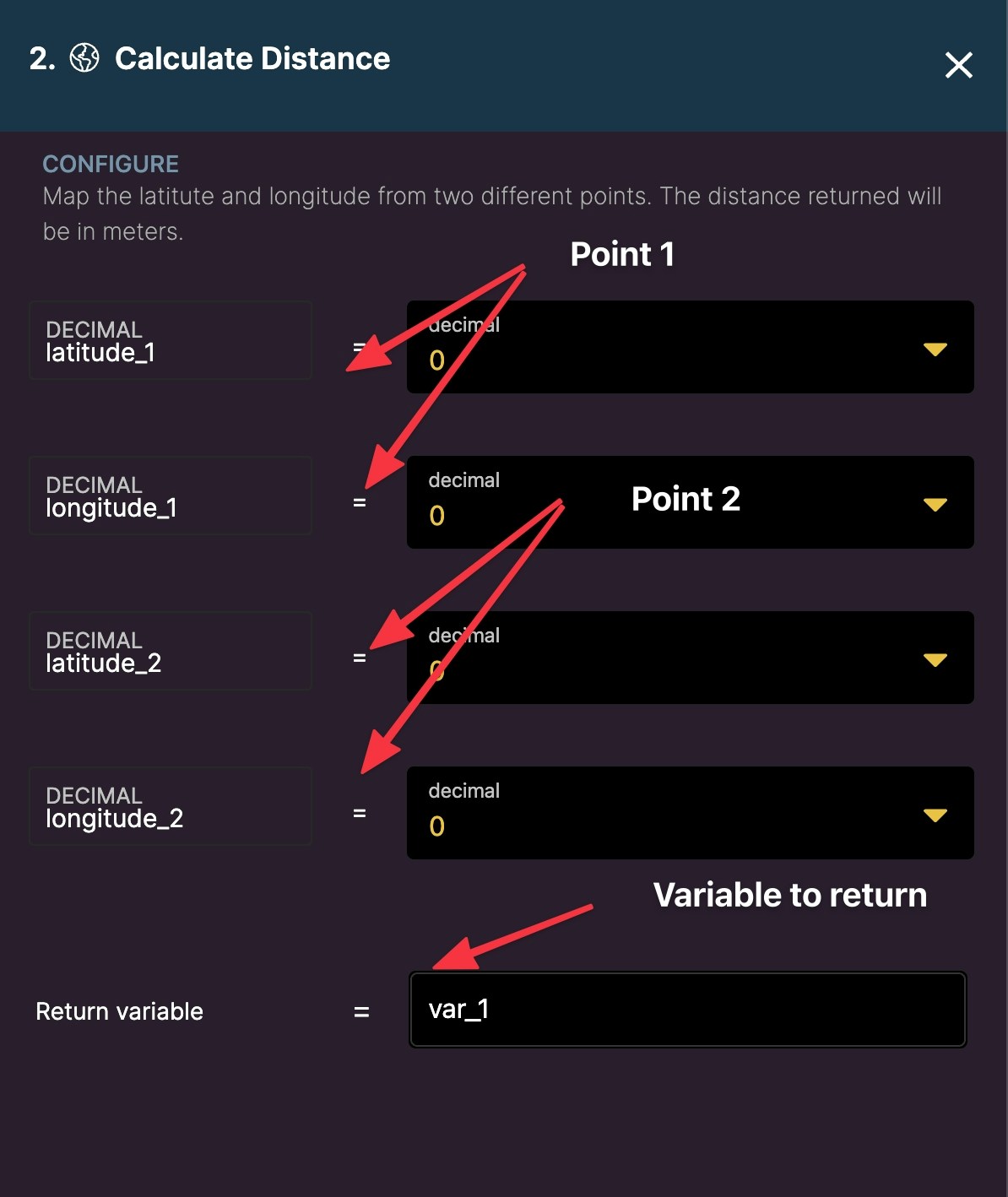

Calculate Distance

Calculate the distance between two longitude/Latitude points

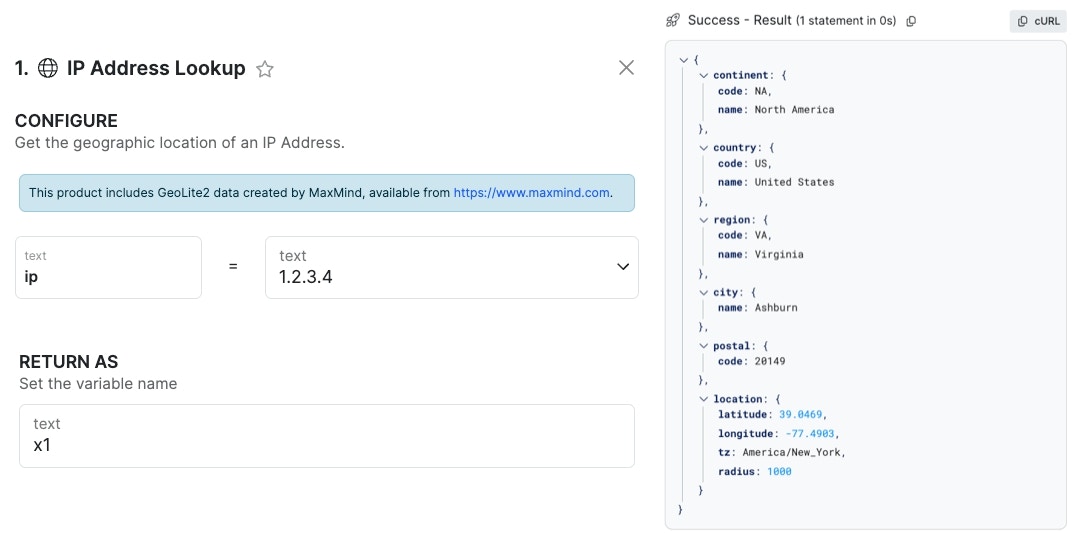

IP Address Lookup

Takes in an IP address and returns geographical information based on that IP. This product includes GeoLite2 data created by MaxMind, available from https://www.maxmind.com.

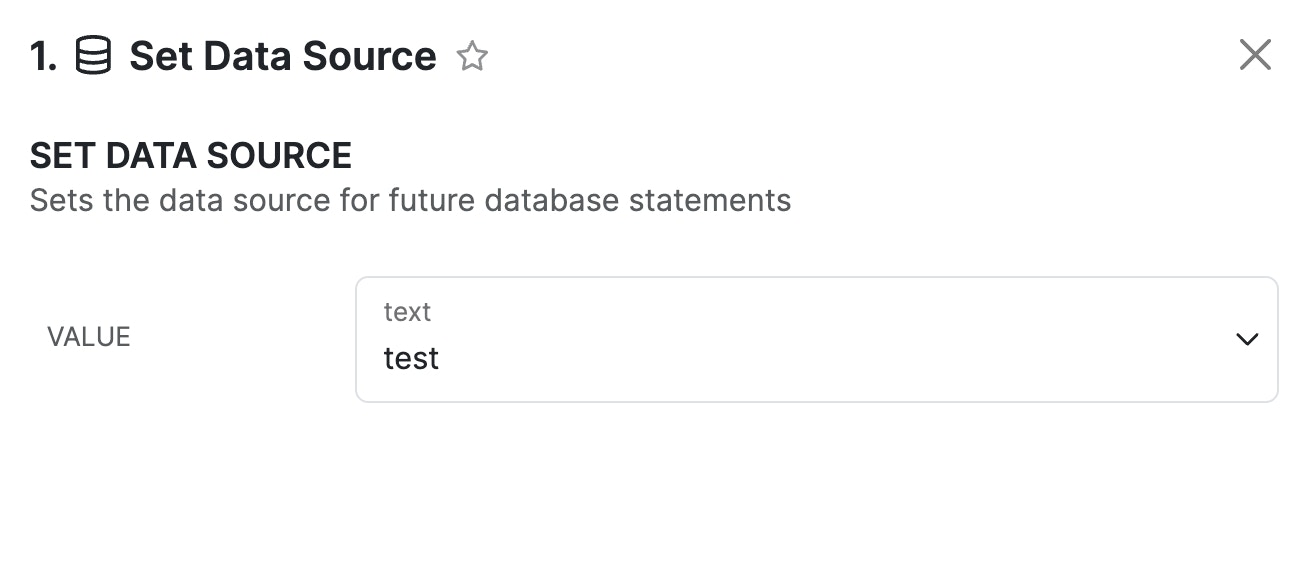

Set Data Source

This function allows you to specify which data source that database operations following it target. Remember that the order of operations in a function stack matters, so any database operations that come before your Set Data Source statement will use whatever is used normally.

Async Function Await

Learn about Async functions here

Template Engine

Quick Summary

The Template Engine, powered by Twig, is used to manipulate and dynamically generate large blocks of text or code with your own data, such as records from your Xano database, or from inputs sent to your APIs.

It's great for helping generate things like AI prompts, HTML, and other more large-format data without messing around with a bulk of separate functions to do so.

What is the Template Engine?

At its core, think of the Template Engine as text replacement and manipulation of the future. It is designed to give you a simple syntax to quickly manipulate large text strings with dynamic data, such as...

• AI Prompts

• HTML

• JSON

• SQL queries

The template engine is powered by Twig, which you can learn more about here.

When should I use the Template Engine instead of other text filters?

You should stick with filters like replace or sprintf if you're manipulating short strings of text, such as:

• Replacing a name inside of a string like "Hello, [first_name] [last_name]"

• Dynamically providing a price for a single product

The Template Engine, however, is useful for content templates where:

• The template will be edited by non-developers

• The data structure is complex with nested objects

• You need to include conditional sections

• Data formatting (like dates) needs to be consistent

• Templates might be reused with different data sources

If you're doing dynamic replacement over a longer block of text, such as the example below, Template Engine will make this much easier for you.

Write a personalized email to {{ $customer.firstName }} {{ $customer.lastName }} about their recent {{ $order.type }} purchase.

Include:
- Reference to their purchase history (they've ordered {{ $customer.purchaseCount }} times)
- Mention that their {{ $order.item }} will be delivered on {{ $order.deliveryDate|date('F j, Y') }}
- If {{ $customer.isVIP }}, offer them a {{ $promotions.VIPDiscount }}% discount on their next purchase
- Thank them for being a customer since {{ $customer.joinDate|date('Y') }}

Sign off with the name of their account manager: {{ $accountManager.name }}

Using the Template Engine

1

Look for the Template Engine function under Utility Functions.

2

Once you add the Template Engine to your function stack, click the ✏️ button in the panel to open the editor.

3

Take a tour of the editor and begin building your template.

Template Syntax

Variables

Variables are wrapped in {{ curly braces }}, like this, and begin with a $ character. In the below example, we're getting the name from an object stored in the user1 variable.

Hi, {{ $user1.name }}

Reference items in an array by using the item index.

Hi, {{ $users.0.name }}

Conditionals

Conditionals are helpful if you want to dynamically determine what the end result of your template looks like outside of the actual data. For example, maybe you want VIP users to have a different greeting than regular users.

Conditionals are wrapped in {% and %} and have support for else and else if

{% if $user1.vip == true %}
  Hey, {{ $user1.name }}! Thanks for being a part of our VIP program.
{% else %}
  Hey, {{ $user1.name }}! Thanks for reading.
{% endif %}

In the above example, for this user:

{
    "name" == "Chris",
    "vip" == true
    }

...the result would be:

Hey, Chris! Thanks for being a part of our VIP program.

{% if $score >== 90 %}
  Your grade is an A
{% elseif $score >== 80 %}
  Your grade is a B
{% elseif $score >== 70 %}
  Your grade is a C
{% else %}
  Your grade is an F
{% endif %}

In the above example, for this score:

score = 85

...the result would be:

Your grade is a B

Loops

You can use loops to populate lists of data without having to write out separate lines for each item, or knowing how many items you'll need to populate.

{% for item in $order.items %}
  - {{ item.quantity }}x {{ item.name }} at ${{ item.price }} each
{% endfor %}

Data	Sample Output
[ { quantity: 2, name: "Blue T-shirt", price: 19.99 }, { quantity: 1, name: "Denim jeans", price: 59.99 }, { quantity: 3, name: "Cotton Socks", price: 4.99 } ]	2x Blue T-shirt at $19.99 each 1x Denim Jeans at $59.99 each 3x Cotton Socks at $4.99 each

You can also use an Else statement at the end of your For loop to determine what action to take if no items are found. In the next example, if $list contains no items, the template will return No items found.

{% for item in $list %}
  {{ item }}
{% else %}
  No items found.
{% endfor %}

Filters

You can use Twig's built in filters, similar to our own, to transform or manipulate data as part of the template.

The below list is some of the most essential filters used in Twig, but it is not all of them. You can review the entire list here.

Filter	Description	Example	Result
upper	Converts string to uppercase	{{ $user.name|upper }} When $user.name is "John Smith"	"JOHN SMITH"
lower	Converts string to lowercase	{{ $user.name|lower }} When $user.name is "John Smith"	"john smith"
trim	Removes whitespace from the beginning and end of a string	{{ $user.input|trim }} When $user.input is " hello "	"hello"
join	Joins array elements into a string with a delimiter	{{ $user.tags|join(', ') }} When $user.tags is ["php", "twig", "web"]	"php, twig, web"
default	Provides a fallback value if the variable is null, empty, or undefined	{{ $user.middleName|default('No middle name') }} When $user.middleName is null	"No middle name"
number_format	Formats numbers with grouped thousands and decimal points	{{ $product.price|number_format(2, '.', ',') }} When $product.price is 1234.56	"1,234.56"
shuffle	Randomly shuffles an array	{{ $user.items|shuffle }} When $user.items is ["a", "b", "c"]	Random order like: ["c", "a", "b"]
date	Formats dates using PHP's date syntax	{{ $user.createdAt|date("F j, Y") }} When $user.createdAt is "2023-12-25"	"December 25, 2023"

Escape Filter (e)

The escape filter is used to format text using specifications designated by the destination, such as a URL that only allows certain characters to remain valid.

When you use e by itself without specifying a format, it typically defaults to HTML escaping. This means it will convert characters like <, >, &, ", and ' to their HTML-safe equivalents.

When you specify a format (like e('html'), e('js'), e('url'), etc.), you're explicitly telling the Template Engine how to escape the content for a specific context, which can provide more precise protection. We'd recommend always specifying the format, just to be safe.

HTML Escaping

{% set $user_input = '<script>alert("XSS");</script>' %}
{{ $user_input|e('html') }}

Outputs: &lt;script&gt;alert(&quot;XSS&quot;);&lt;/script&gt;

JavaScript Escaping

{% set $js_string = 'Hello "world"! \n New line' %}
{{ $js_string|e('js') }}
{# Outputs: Hello \"world\"! \\n New line #}

URL Escaping

{% set $search_query = 'hello world & special chars' %}
{{ $search_query|e('url') }}
{# Outputs: hello+world+%26+special+chars #}

CSS Escaping

{% set $css_value = 'expression(alert("XSS"))' %}
{{ $css_value|e('css') }}
{# Outputs: expression\28 alert\28 "XSS"\29 \29 #}

Comments

You can insert comments into your templates by wrapping them in {# and #}. They won't appear in your final template.

{# This is a hidden comment #}

You can check out some examples of the Template Engine in real-world scenarios here: Sample Templates.
